Handheld laser welding head of SUP21T

Short Description:

Name:Product Name:Hand-held laser welding head
Model: Welding head  -SUP 21T
Protective Lens: D18*2
Focusing lens:D20*4.5 F150
Collimating Lens:D16*5 F60
Reflector:30*14 T2
Seaing Ring:18.5*21*1.7
Sealing element:18.5*20*5*1.7
Weight:0.7KG


Product Detail

Product Tags

Advantage

Safe. - Perfectly safe
Independent research and development of security detection system, set up a number of security alarms, security and stability.

Time saving - efficient and convenient
Focus mirror, protection mirror drawer, convenient replacement. Collimating len is integrated with QBH for easy replacement.

Lightness - Light and convenient

Smaller size, lighter weight, flexible operation, easy to use and more comfortable.

Quality - beautiful welding - stable performance

Optical structure optimization, high welding strength, small deformation, high penetration.

Performance - Multiple functions
Support hand-held continuous welding, spot welding, cleaning, cutting, manual and automatic integration, password authorization. Real-time monitoring of all interfaces. Convenient for on-site maintenance and remote  technical support.

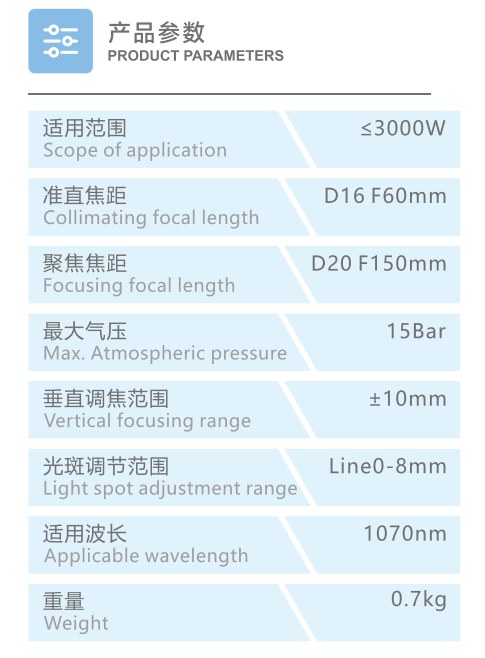

Specification

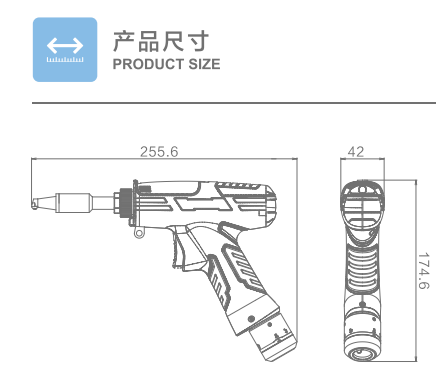

Product size
